Vacuum Pads (Vacuum Suction Cups)
Mark-free Pad (Vacuum Suction Cup) ZP2
![]() | ・For use where adsorption marks must not be left on workpieces ・Pad which reduces the number of adsorption marks left on workpieces by the rubber |
Series | Pad form | Pad diameter(mm) |
---|---|---|
ZP2 | Flat type | φ4,φ6,φ8,φ10,φ13,φ16, φ20,φ25,φ32,φ40,φ50 |
ZP2 | High Rigidity (Flat type with ribs) | φ40,φ50,φ63,φ80,φ100,φ125 |
ZP2 | Resin Attachment | Pad diameter: φ6,φ8,φ10,φ13, φ16,φ20,φ25,φ32 |
■For use where adsorption marks must not be left on workpieces
Application example

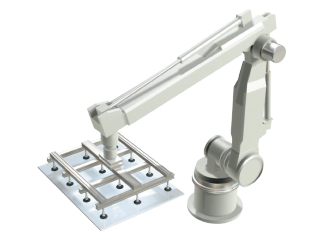

:Suction transport of glass substrate
・Solar cell manufacturing equipment
・Semiconductor manufacturing equipment
・FPD production equipment etc

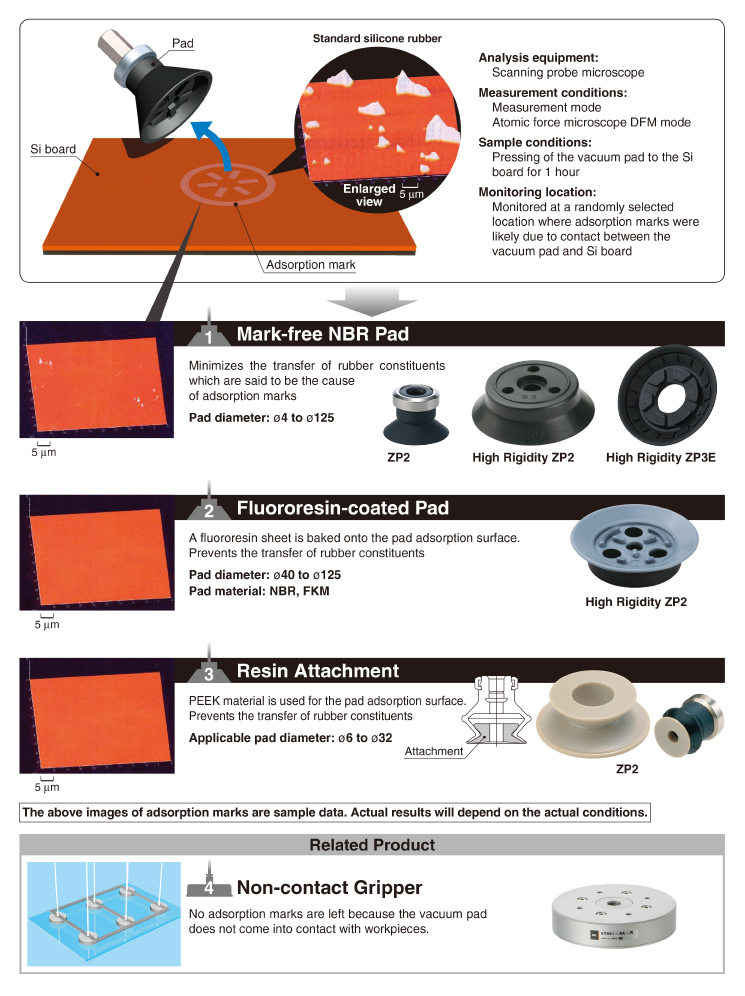

■Minimizes the transfer of rubber constituents to workpieces

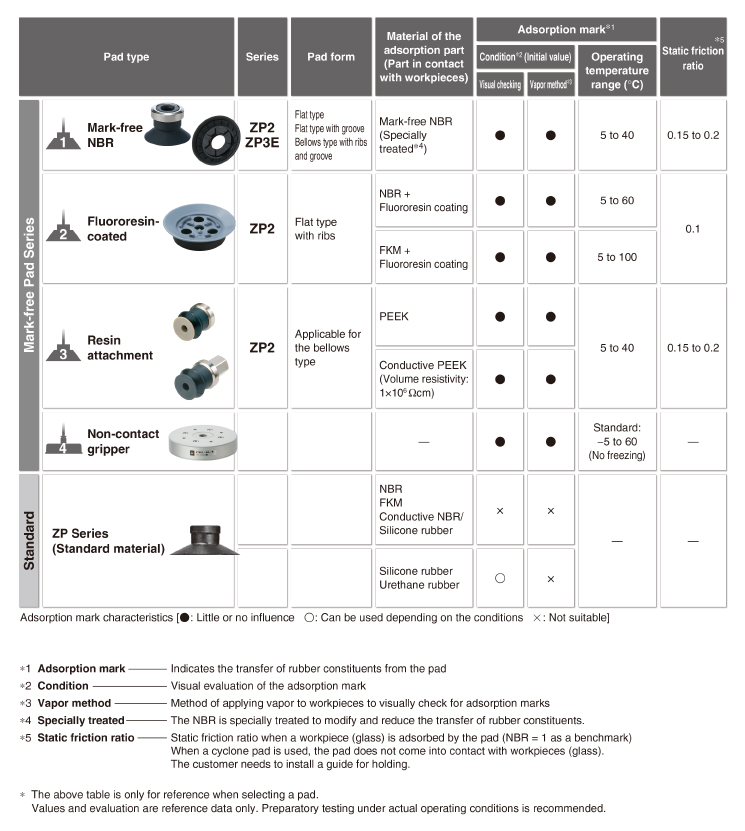

■Variations
